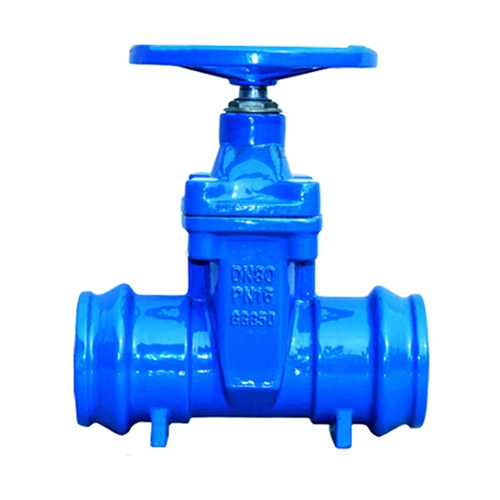

Socket Ends Non-rising Resilient Seated Gate Valve

Socket Ends Non-rising Resilient Seated Gate Valve

Features:

Bolt Bonnet
Replaceable O-ring
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside
Painting: The German Ral Color
Maximum temperature 80Ў



Technical Specification:

Design: DIN3352/SABS 664
Face to Face: DIN 3202 F5/SABS 664
Hydraulic test to ISO 5208
Seat Test pressure: 17 . 6 bar
Shell Test pressure: 24 bar
Operating torque test



Optional Extras:

Stem Cap
Positional Indicator
Exension Spindle/T Key





Main Materials

Sr.no Part Material
1 Body GGG50
2 Wedge DI+EPDM/NBR
3 Wedge Nut Brass
4 Stem AISI420
5 O-Ring EPDM/NBR
6 Bonnet GGG50
7 Back Sealing O Ring EPDM/NBR
10 Stuffing Nut Brass
13 Gland Flange GGG50



Dementions:

Size PIPE DIA L L1 H H1 W
F5 SABS
DN50 63 250 335 77 300 340 180
DN65 75 270 335 80 310 350 180
DN80 90 280 335 84 350 390 200
DN100 110 300 355 88 380 420 220
DN125 140 325 375 91 420 460 220
DN150 160 350 405 94 470 510 250
DN200 225 400 450 100 590 630 280
DN250 250 450 450 125 680 720 320
Dn300 315 500 500 140 790 830 360



NOTE:
Request for special characteristic is available . VELYA reserves the right to modify dimensions , or design on products without prior notice .
