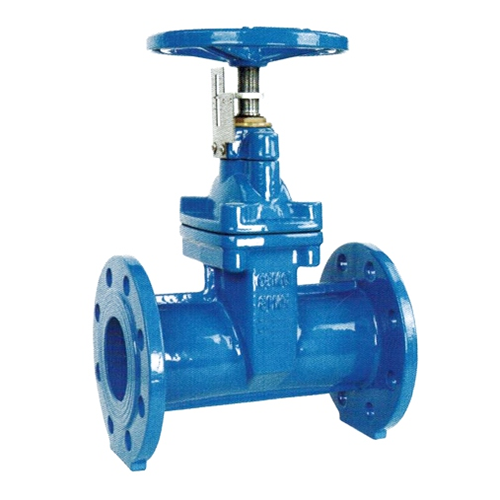

DIN3202 F4JF5 Non-Rising Stem Resilient Seated Gate Valve Type C

DIN3202 F4JF5 Non-Rising Stem Resilient Seated Gate Valve Type C

Features:

Replaceable O-ring
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside
Painting: The German Ral Color
Maximum temperature 80Ў



Technical Specification:

Design: DIN 3352
Face to Face: DIN 3202 F4JJJ
Flanges: EN1 092 – 2 PN16
Hydraulic test to ISO 5208
Seat Test pressure: 17 . 6 bar
Shell Test pressure: 24 bar
Operating torque test



Optional Extras:

Stem Cap
Positional Indicator
ISO Top Flange
Exension Spindle/T Key





Main Materials

Sr.no Part Material
1 Body GGG50
2 Wedge GGG50+EPDM/NBR
3 Wedge Nut Brass
4 Stem AISI420
10 O-Ring EPDM/NBR
11 O-Ring EPDM/NBR
13 Stuffing Nut JJJJJ
14 Gland Flange GGG50
22 Stuffing Bearing JJJJJJJJ
23 Position Indicator Stainless Steel



Dementions:

Size L D D1 D2 b n-d H H1 W
F4 F5
DN40 140 240 150 110 84 19 4-19 240 310 160
DN50 150 250 165 125 99 19 4-19 250 320 160
DN65 170 270 185 145 118 19 4-19 265 335 180
DN80 180 280 200 160 132 19 8-19 300 370 200
DN100 190 300 220 180 156 19 8-19 350 420 200
DN125 200 325 250 210 184 19 8-19 410 480 220
DN150 210 350 285 240 211 19 8-23 450 520 250
DN200 230 400 340 295 266 20 12-23 550 620 280
DN250 250 450 405 355 319 22 12-28 650 720 320
DN300 270 500 460 410 370 24.5 12-28 710 780 350



NOTE:
Request for special characteristic is available . VELYA reserves the right to modify dimensions , or design on products without prior notice .
