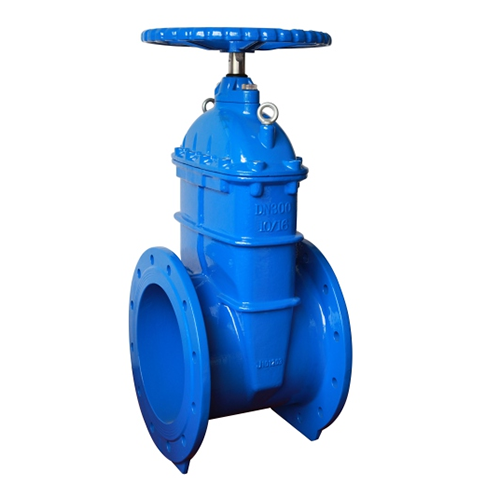

DIN3202 F4/F5 Big Size Gate Resilient Seated Valve Type C

DIN3202 F4/F5 Big Size Gate Resilient Seated Valve Type C

Features:

Replaceable O-ring
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside
Painting: The German Ral Color
Maximum temperature 80Ў



Technical Specification:

Design: DIN 3352
Face to Face: DIN 3202 F4JJJ
Flanges: EN1 092 – 2 PN16
Hydraulic test to ISO 5208
Seat Test pressure: 17 . 6 bar
Shell Test pressure: 24 bar
Operating torque test



Optional Extras:

Stem Cap
Positional Indicator
ISO Top Flange
Exension Spindle/T Key
Gear Box
By-Pass Valve





Main Materials

Sr.no Part Material
1 Body GGG50
2 Wedge GGG50+EPDM/NBR
3 Wedge Nut Brass
4 Stem AISI420
10 O-Ring EPDM/NBR
11 O-Ring EPDM/NBR
13 Stuffing Nut JJJJJ
14 Gland Flange GGG50
22 Position Indicator Stainless Steel
23 Down Bushing JJJJJ

Dementions:

Size L D D1 D2 b N-d H H1 W
F4 F5
DN350 290 550 520 470 431 26.5 16-28 762 852 450
DN400 310 600 580 525 482 28 16-131 836 926 450
DN450 330 650 640 585 550 30 20-131 957 1047 640
DN500 350 700 715 650 611 31.5 20-134 1036 1126 640
DN600 390 800 840 770 722 36 20-137 1188 1278 640



NOTE:
Request for special characteristic is available . VELYA reserves the right to modify dimensions , or design on products without prior notice .
