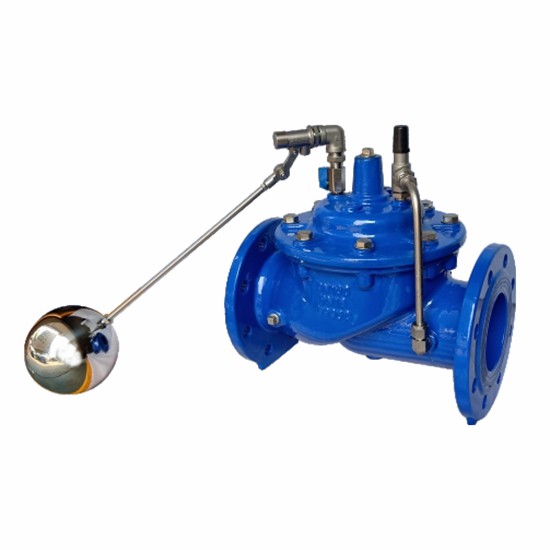

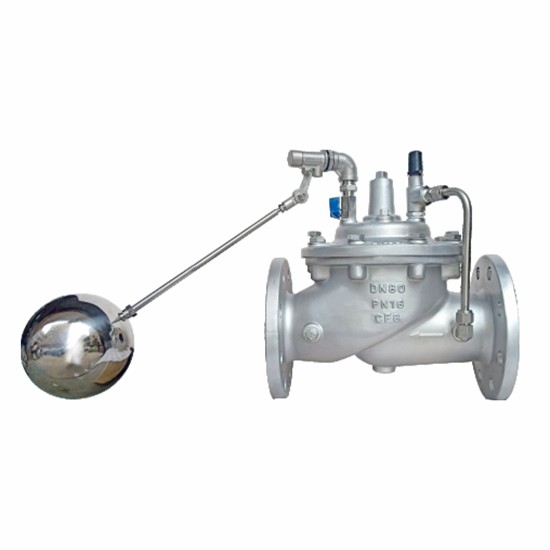

100X Remote Float Control Valve

Nominal Model:DN50-DN600
Nominal Pressure:PN16 N25
Applicable Temperature:0℃-80℃
Applicable Medium:Water
Nominal Pressure:1.0Mpa-2.5Mpa
Design Standard:JB/T 10674-2006
Test Standard:GB/T 13927-2008

Working principle:

When the liquid level reaches the set height,it automatically closes,and when the liquid level drops to a certain height,it automatically replenishes water.



Technical parameters:

Nominal Model:DN50-DN600
Nominal Pressure:PN16 N25
Applicable Temperature:0℃-80℃
Applicable Medium:Water
Nominal Pressure:1.0Mpa-2.5Mpa
Design Standard:JB/T 10674-2006
Test Standard:GB/T 13927-2008

Main material:

1.Body GGG50 11.Spring 304
2.Stem 2Cr13 12.Diaphragm EPDM
3.Seat CF8 13.Bonnet GGG50
4.Seal ring gland Q235 14.Hex nut 304
5.0-Ring NBR 15.Stud balt 304
6.O-Ring NBR 16.SCREW   PLUG 304
7.Seal Ring NBR 17.Needle valve 304
8.Disc GGG50 18.Ballvalve 304
9.Diaphragm gland GGG50 19.Float 304
10.Hex nut 304



lnstallation diagram:
